Honed Tube

Anbao Honed Tube

Honed Tube

As a professional honed tube manufacturer and supplier, Anbao Hydraulic has been supplying and exporting honed steel tube from China for almost 23 years.
Any inquiries and problems please feel free to send email: inquiry@ab-steel.com, we will reply you within 1 working day.

Material: ST52,CK45,AISI4140, SAE4130,16Mn, 1020,1026,1045,SAE1518,SAE4145 42CrMo,E355,Stainless Steel 304/316,Duplex 2205,etc.

Delivery Condition: BK, BK+S, GBK, NBK

ID Size : 20mm – 1500mm

Length: max 16m

Type: Seamless, Hot Rolled, Cold Rolled, Cold Drawn

Straightness: ≤ 0.5/1000

Roughness: 0.2-0.4 um

Tolerance EXT: DIN2391, EN10305, GB/T 1619, GOST 8731,GOST 1050,GOST 4543

Tolerance INT: H7,H8,H9

Protection: Anti-rust oil on inside and outside surface, plastic caps in both ends.

Packing: Bundle with steel strip and PE sheet or wooden case

we supply honing tube in various grade and specification which are as follows.

ST52 Honed tube

Pre Honed Tubes

Hydraulic Cylinder Barrel

Standard Honed Tubes

Customized Honed Tubes

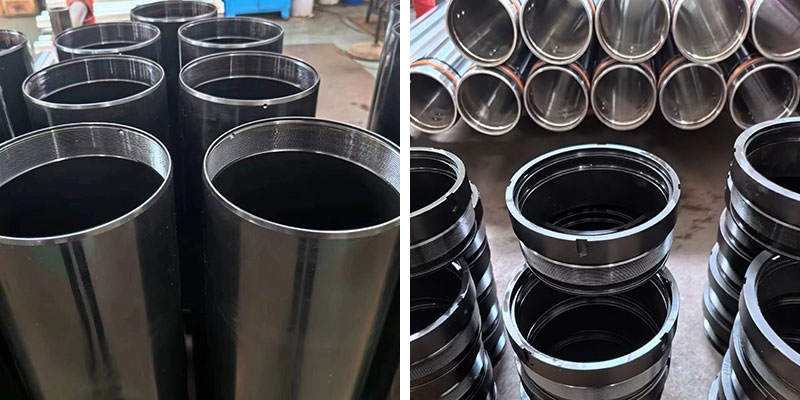

Nitrided Cylinder Barrel Tube

Carbon Seamless Steel pipe/tube

Hard chrome plated rod/bar/shaft(Piston rod)

Hollow Bar

Hydraulic cylinder

Anbao Honed Tubes
E355 Hydraulic Honed Tubes
honed cylinder barrel
Anbao Honed Tubes

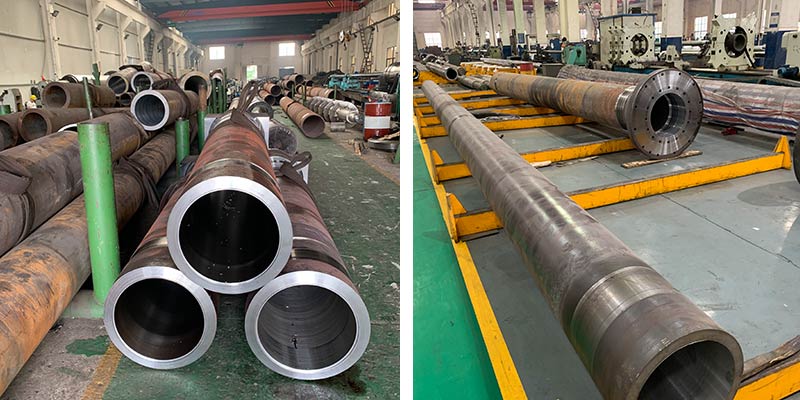

large bore honed tube
Nitriding-cylinder-tube
Honed Tube supplier
honed tube suppliers and manufacturers
hydraulic honed Barrels
honed tube for hydraulic cylinde

 ID Honing

Utilize an abrasive stone,which turns while being moved in and out of the work piece.

The honing process makes :

1.Smooth surface finishes inside bores

2.Hold precise tolerances on bore diameters

 ID: H7 H8 H9   ID roughness:0.2-0.8μm

Roller Burnish+ Skiving

Two thin chips are cut at high feed rate while the tool passes through the work piece. producing super finish surface,with a bore precise tolerance.

Advantages of Our Honed Steel tube And Roller Burnished Steel Tube

1.High precision tolerances;

Our honed tube can meet ID tolerance H7, H8, H9, … etc according to the customer’ requirements, and its I.D dimension.

2.Seamless tube with high pressure resistance;We only use seamless cold drawn tubes to produce honed pipes, which means our honed tubing can work under higher pressure, thus our honed pipes are more reliable for hydraulic cylinder applications.

3.High Smooth inside surface;

The roughness of our honed pipe is Max Ra 0.4 microns ID finish (16Max Ra ID Finish).

Flexible order quantity: we accept small quantity orders, even if there is only one piece of hydraulic cylinder tubing we can produce and supply.

4.Good weld ability: The weld ability of our honed steel tubing is very good, this is quite helpful for manufacturing the cylinders.

honed tube manufacturers
cylinder honed tube

Anbao Hydraulic, one leading manufacturer of Ready To Honed Pipe,Honed Tube, Skived Roller Burnished Tube, Ready to Hone Tube,

Available Products of Honed Tubes

  • E355 (EN 10305-1) Honed Tubes
  • St52-3 (DIN 2391) Honed Tube
  • H8 (EN ISO 286-2) Honed Tube
  • AISI / SAE / ASTM Honed Tubes
  • +SR (EN 10305-1) Honed Tubing

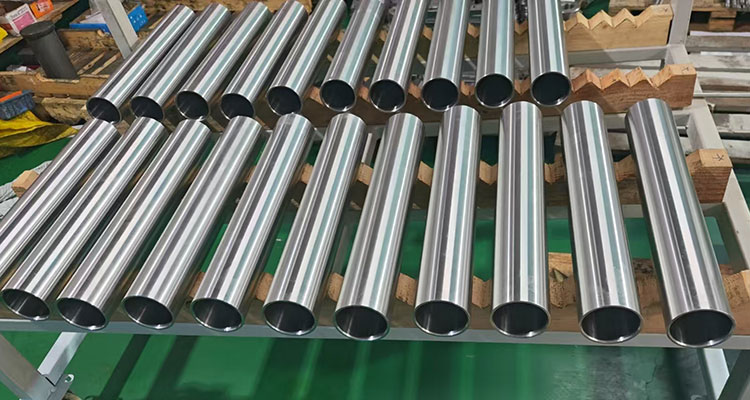

  • Stainless Steel Honed Tube
  • SS 304/304L Honed Tube
  • SS 316/316L Honed Tube
  • ST52 Honed Tube
  • Mild Steel Honed Tube
  • Carbon Steel Honed Tube
  • BK+S (DIN 2391) Honed Tubes
  • E355 Honing Tubes
  • H8 Honed Tube
  • Seamless Honed Tube
  • Nitrided Honed Tube

Hard Chrome Plated Honed Tubes
Stainless Steel Honed Tubes
Honed Tube For Hydraulic Cylinder
Hydraulic Honed Tube
Honed Steel Tube

For all kinds of hydraulic cylinders, hydraulic machinery, and pneumatic cylinders.
We also provide Machining Service as per drawing, OEM/ODM welcome!

Want to purchase Our hydraulic cylinder tube?

Please contact us through below methods for more information.

Email: sales@ab-steel.com inquiry@ab-steel.com
Tel & WhatsApp & Wechat  : +8613681801718
