HDD Drill Pipe & Drill Rod
Anbao Group Specialized in the production of HDD Drill Pipe & Drill Rod for drilling industry, Our drill pipes for horizontal directional drills are made to S135 industry standard specifications.The high-quality drilling pipe and drilling rod produced by ANBAO can flexibly meet the configuration and use requirements of different drilling depths and connection methods. Pls email us via inquiry@ab-steel.com if you have any inquires.
Steel Grade: S135 N80, P110, P105,SM110, J55 K55, SAE4140, SAE 4130,SAE 4340, 42CrMo, 42Crmo4, 25CrMo4 , 30CrMo 34CrMo4 ,36CrNiMo4
Diameter Range :O.D 30-140 mm, WT 3-19mm
Length: According to customer’s specific requirements
Delivery Condition: 1.Cold drawn and stress relieved (+SR) (BKS) 2. Normalized (+N) (NBK) 3. Quenched and Tempered (QT)
Applications: Drill Rod Tube ; Casing Tube; Core Barrel Inner Tube & Outer Tube ;Coupling Tube ,Drill Pipe
Features Of Our HDD Drill Tubes & Rods For Directional Drilling :
- We use premium quality steel materials of SAE4140,4130,4340, 42Crmo4 or customized
- High precision production and tolerances,highly specialized heat treatment process
- Seamless high tensile and high pressure resistance drilling pipes and inner tube material
- Latest robot welding technology with welds independently
- Flexible order quantity: we accept small quantity as trial orders
- Tested and certified by Third Party Inspection Institute SGS,TUV,ABS BV GL RINA CCS and so on.
- Drill pipes and rods are manufactured using premium quality materials and the most advanced manufacturing techniques ensuring maximum strength and durability.
Our Main Products For Drilling

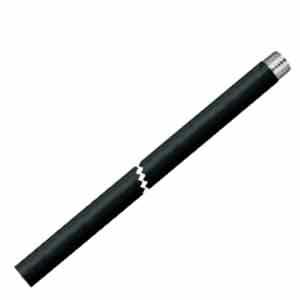

Drill Rod Tube

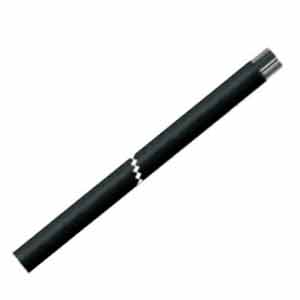

Casing Tube

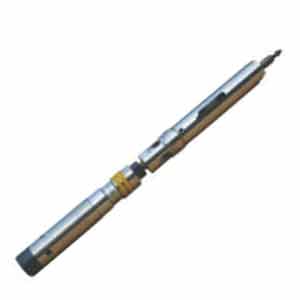

Core Barrel Inner Tube & Outer Tube

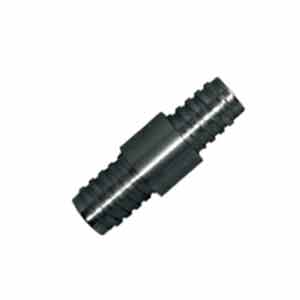

Couplings
Dimensional Range:
| SIZE | Wireline Drill Rod | SIZE | Casing | ||
| Outer Diameter (mm) | Inner Diameter (mm) | Outer Diameter (mm) | Inner Diameter (mm) | ||
| Nom. | Nom. | Nom. | Nom. | ||
| A | 44.45 | 35.05 | AW | 57.1 | 48.4 |
| B | 55.55 | 46.05 | BW | 73.0 | 60.3 |
| N | 69.85 | 60.45 | NW | 88.9 | 76.2 |
| H | 88.90 | 77.80 | HW | 114.3 | 101.6 |
| P | 114.30 | 101.60 | PW | 139.7 | 127.0 |
| S | 139.70 | 125.50 |
| SIZE | Outer Tube | Inner Tube | ||
| Outer Diameter (mm) | Inner Diameter (mm) | Outer Diameter (mm) | Inner Diameter (mm) | |
| Nom. | Nom. | Nom. | Nom. | |
| A | 46.05 | 36.50 | 32.54 | 28.58 |
| B | 57.15 | 46.05 | 42.85 | 38.10 |
| N | 73.03 | 60.33 | 55.58 | 49.99 |
| H | 92.08 | 77.80 | 73.03 | 66.80 |
| P | 117.48 | 101.60 | 95.25 | 88.90 |
| S | 142.88 | 125.50 | 117.00 | 111.00 |
